Recorded test events
12
Hybrid Rocket Engine
Hyperion
Peak thrust
750LBF
Theoretical impulse
7,800LBF·S
Theoretical specific impulse
219S

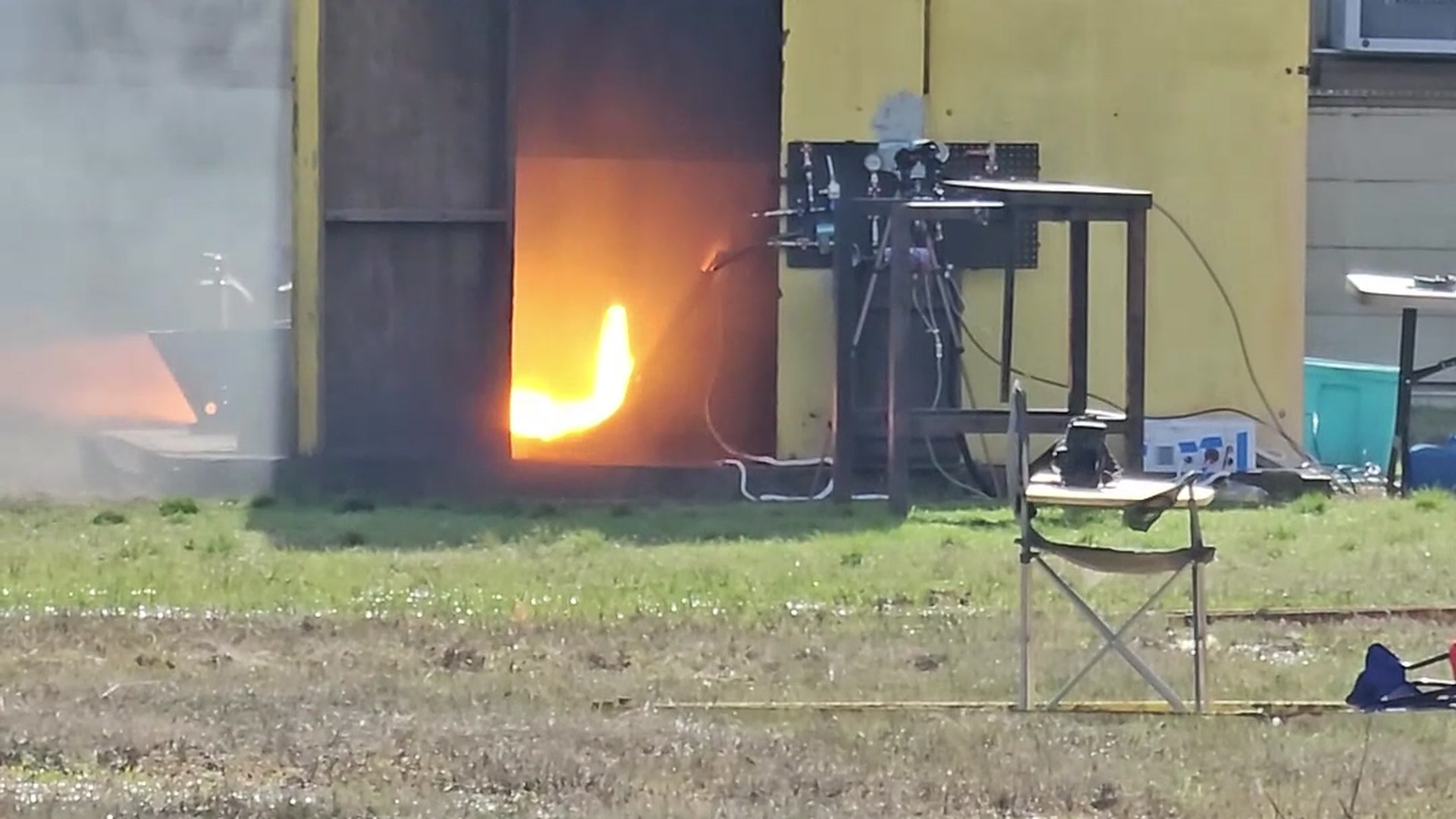

Static engine tests
4
Engine overview

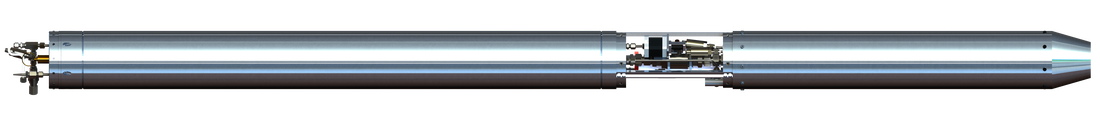

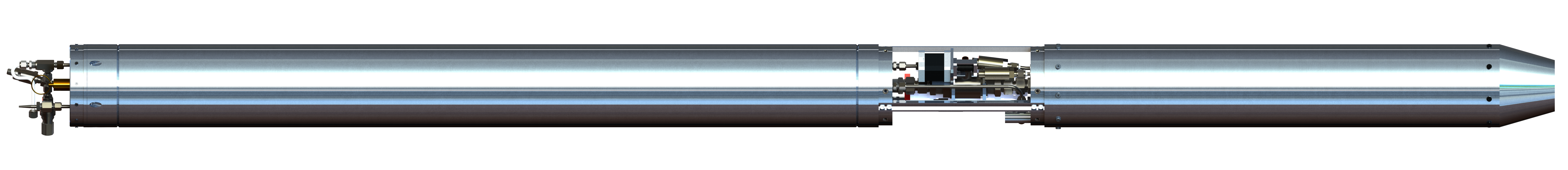

Hyperion was developed by SRT-10 as a new 30,000-foot-capable hybrid engine for the Odysseus program. The design moved into a six-inch vehicle envelope while increasing tank and chamber length, adding a solid ignition system, using stepper-motor actuation through a gear train, and introducing SRT’s first in-house-designed pressure vessel.
Program record
Archive- Vehicle
- Odysseus
- Designed
- SRT-102022–2023
- Built
- SRT-102022–2023
- SRT-112023–2024
- Modified
- SRT-112023–2024
Engine record
Configuration
- Versions
- 1
- Vehicle
- Odysseus
- Engine type
- Hybrid
- Oxidizer
- Nitrous Oxide (N2O)
- Fuel
- Hydroxyl-Terminated Polybutadiene (HTPB)
- Pressurization method
- Self-pressurized
- Injection method
- Vortex Injection
- Impinging Injection
Performance
Design point
- Peak thrust
- 750 lbf
- Theoretical impulse
- 7800 lbf-sec
- Theoretical specific impulse
- 219 sec
Verification
Test record
- Hydrostatic tests
- 2
- Cold flow tests
- 6
- Static engine tests
- 4
