Recorded test events
0
Hybrid Rocket Engine
Vulcan
Operating thrust
0LBF
Peak thrust
0LBF
Theoretical impulse
0LBF·S
Theoretical specific impulse
0S
Engine overview

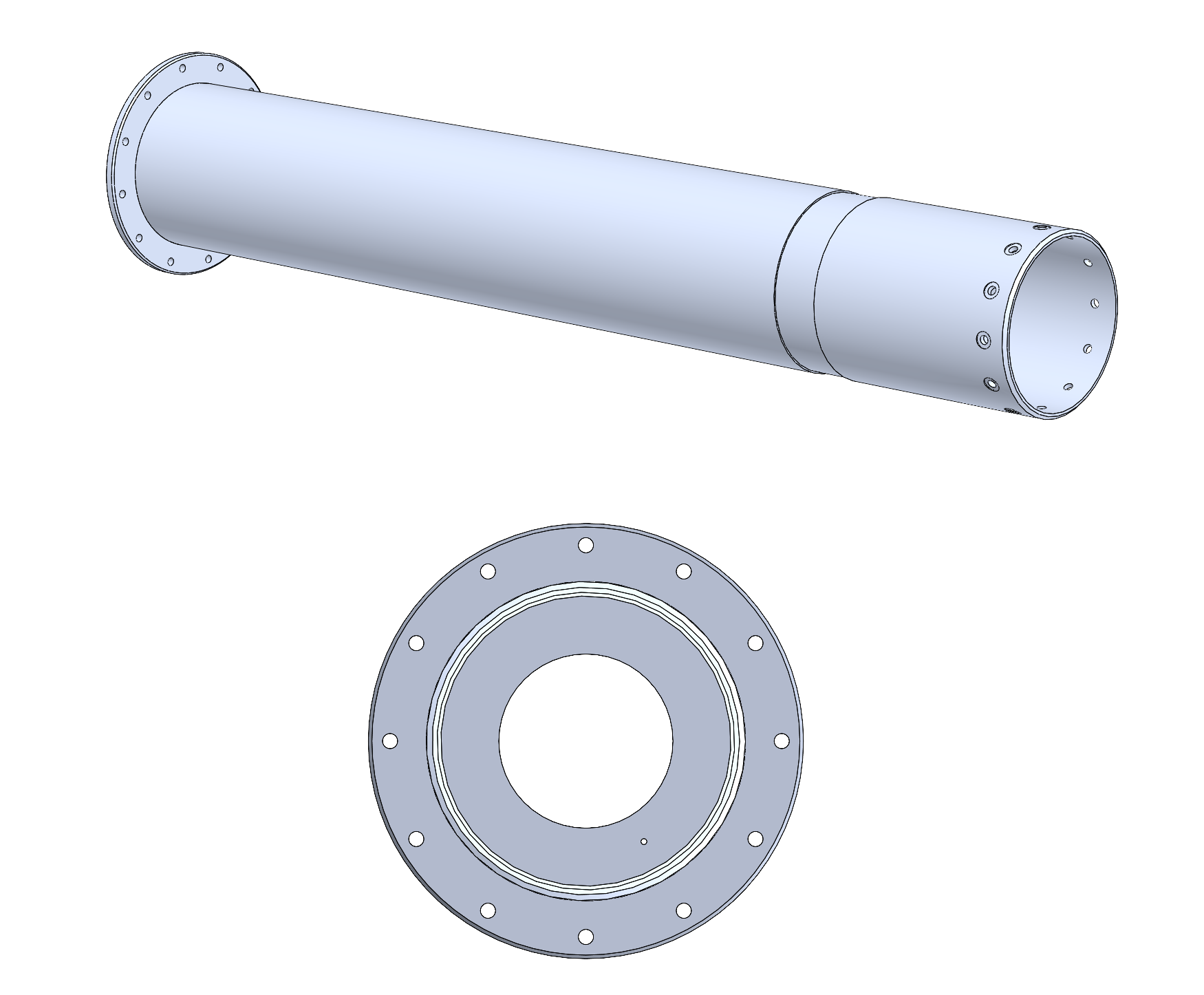

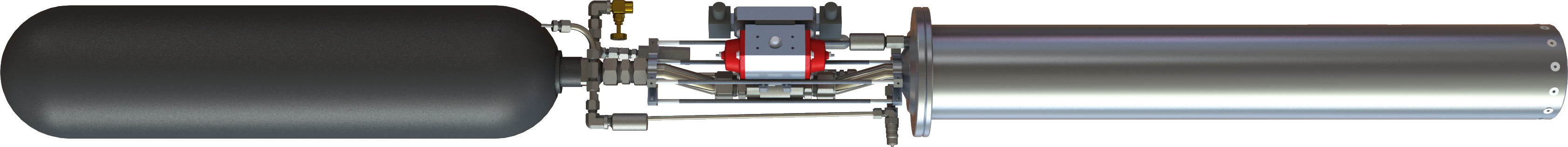

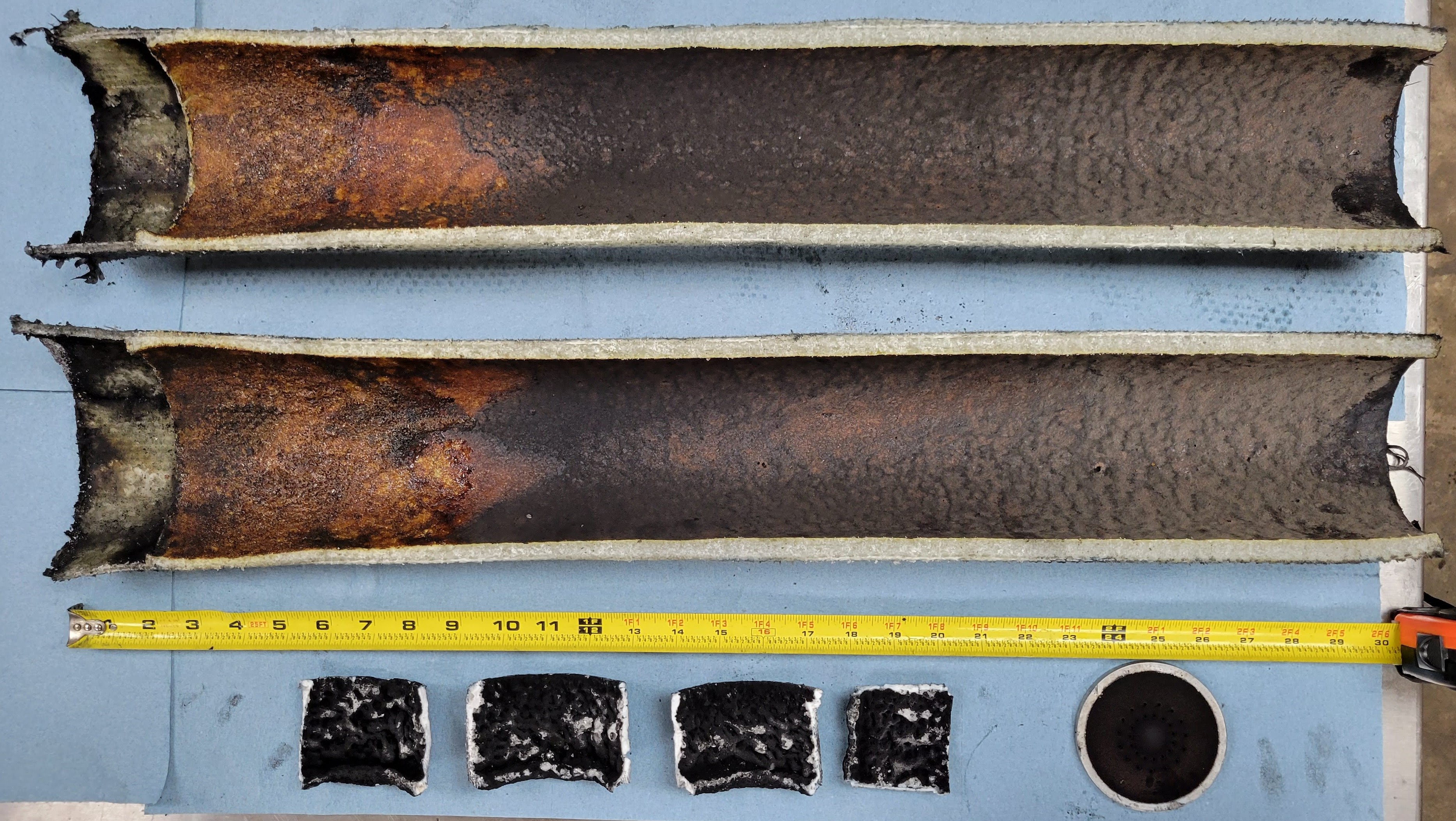

Vulcan was designed by SRT-7 as a 30,000-foot-capable evolution of Nova and later supported the Lazarus program. The design increased tank and chamber size, adopted solid ignition, used a commercial pneumatic ball-valve actuation system, and added manual venting. Fuel-grain additive development was pursued to raise total impulse and thrust for the IREC mission.
Program record
Archive- Vehicle
- Lazarus
- Designed
- SRT-72019–2020
- Built
- SRT-72019–2020
- SRT-82020–2021
- SRT-92021–2022
- Modified
- SRT-92021–2022
Engine record
Configuration
- Versions
- 1
- Vehicle
- Lazarus
- Engine type
- Hybrid
- Oxidizer
- Nitrous Oxide (N2O)
- Fuel
- Hydroxyl-Terminated Polybutadiene (HTPB)
- Pressurization method
- Self-pressurized
- Injection method
- Vortex Injection
- Impinging Injection
Performance
Design point
- Peak thrust
- 1300 lbf
- Operating thrust
- 850 lbf
- Theoretical impulse
- 7165 lbf-sec
- Theoretical specific impulse
- 217 sec
Verification
Test record
- Hydrostatic tests
- 4
- Cold flow tests
- 0
- Static engine tests
- 4
